BAUMANN power|box EOL Test

ENHANCED FLEXIBILITY FOR EOL TEST OF POWER CONVERTERS

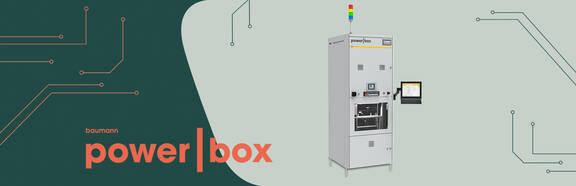

The baumann power|box is the fl exible platform for test engineering applications in power electronics. When used for testing assemblies and control units, it reliably meets the requirements for quality assurance and a zero-defect strategy in production.
Löhnert Elektronik‘s performance testing technology is designed and built according to customer-specific test specifications. The basic tests on a converter module include simple measurement tasks and performance tests on the main circuit of the directcurrent source via the three-phase bridge to the alternating current circuit.

Baumann power|box EOL Test

Product characteristics

Dimensions

  • Model 2.4   700 mm x 1050 mm
  • Model 4.4 1050 mm x 1050 mm
  • Model 6.4 1400 mm x 1050 mm
  • Height: 2330 mm -100/ +50 mm with adjustable feet

The testing technology is consistently built up in modular 19-inch technology:

  • Use of qualified functional modules
  • Reduction of the planning work through large existing function blocks
  • Flexible construction of new projects or changes to existing projects
  • Better serviceability through replacement and external repair

Contacting

  • Changeable adapters
  • VPC interface
  •  High current adaptation
  • Coolant adaptation
  • Safety Engineering

Control

  • Automation and safety technology: Beckhoff
  • Measurement technology: Beckhoff, NI, R&S

Software

  • LisRT
  • NI TestStand

Coolant Management

  • Coolant circulation
  • Leak test
  • Drain
  • Temperature control unit separate

Electrical load circuit

  • Power supply ±HV 750 V/15 KW
  • Load choke approx. 600 A / 200  Hz

Loading types

  • automatic: robot, conveyor belt
  • manual: drawer
